THE INERT 4030 ELITE BOMB SUIT

-New suit and frontal armour plate design, delivering 360° protection, with seamless coverage of critical areas

- Enhanced fit and mobility enabling extended wear and access in confined spaces

- Advanced EOD helmet design for enhanced optical performance and impact protection

- Increased size range to fit 5th percentile female to 99th percentile male operators

- Additional safety features for fast, emergency suit removal (less than 30 seconds)

- User configurable with full system integration (communications, cooling, CBRN)

The 4030 ELITE offers a highly modular and scalable system with the option to build and accessorize the suit around the user’s requirements.

It also provides excellent ergonomics and dexterity due to our patents in flexible armour construction.

This has been a major development and we are looking forward to the next phase in our EOD growth.”

The new 4030 ELITE Bomb Disposal Suit and Helmet System is the result of extensive collaboration with EOD operators and uses cutting edge technology to meet the requirements of NIJ 0117.01, the US National Institute of Justice Public Safety Bomb Suit standard

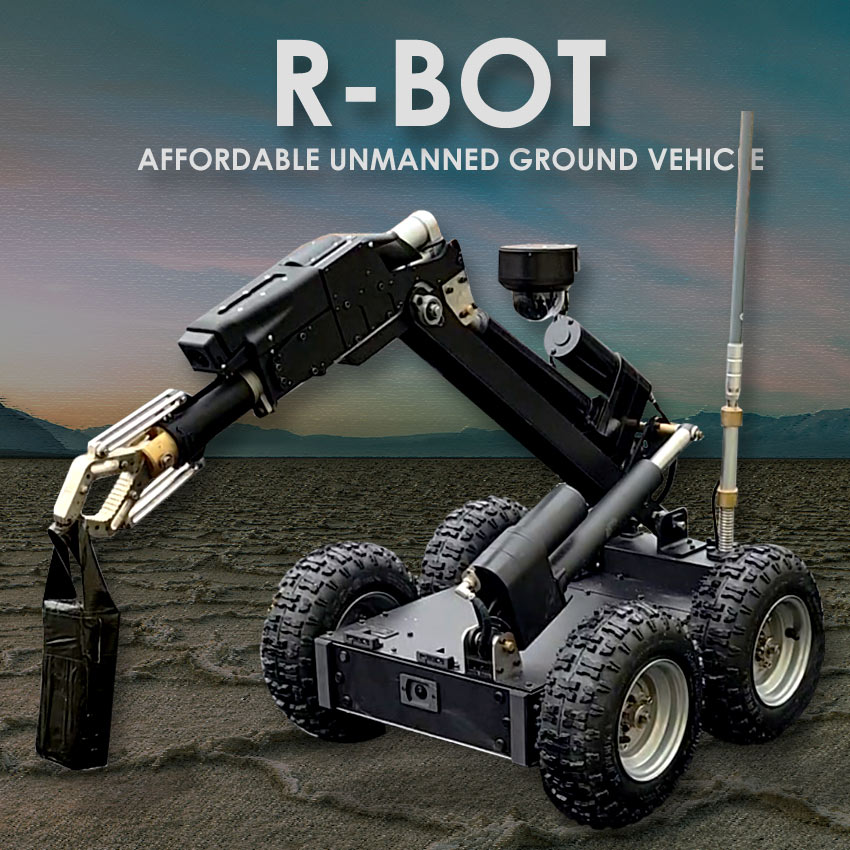

R-BOT AFFORDABLE UNMANNED GROUND VEHICLE

The R-BOT is an unmanned ground vehicle (“UGV”). It can be used for a broad range of applications that require remote inspection and/or manipulation.

- Reconnaissance
- Scout areas for potential threats or hazards such as booby-traps, opposing personnel, ground sign awareness, etc. using the 4 onboard cameras
- Open doors with the gripper
- Built-in wireless capabilities for up to 400 meters (~1,300 feet)
- Manipulation:
- Lift objects up to 44 lbs.
- Drag objects over 100 lbs.
- The gripper has a 6″ span and has a 360 degree continuous rotation

The R-BOT is easy to set up in under 10 minutes, and is controlled by an off-the-shelf Xbox controller.

The controller can be plugged directly into the R-BOT or via a laptop that displays the UGV’s 4 onboard camera

The R-BOT is easy to set up in under 10 minutes, and is controlled by an off-the-shelf Xbox controller.

The controller can be plugged directly into the R-BOT or via a laptop that displays the UGV’s 4 onboard camera

The R-BOT is ~35″ long, 25″ wide, and 24″ high at it’s “closed” position. It can reach up to 51″ high or up to 23″ beyond the front end. It weighs ~143 lbs (two-man portable).
SPECTRAN V6 X

10 MHz
8 GHz | 245 MHz I/Q streaming (via 2 x USB) | 245 MHz TX

SPECTRAN® V6 X is the world's first and only 8 GHz USB spectrum analyzer with dual USB true I/Q streaming of up to 245 MHz (via 2xUSB) instanta­neous bandwidth (complex I/Q).

It offers an extremely small POI (Probability Of Intercept) of up to 10 ns and thus captures even extremely short signals.

Furthermore, the SPECTRAN V6 X integrates a vector signal generator/tracking generator with a modulation bandwidth of up to 245 MHz.

RSA250X
(10MHz - 6GHz / opt. 8GHz)

RSA500X
(10MHz - 6GHz / opt. 8GHz)

RSA2000X
(10MHz - 6GHz / opt. 8GHz)

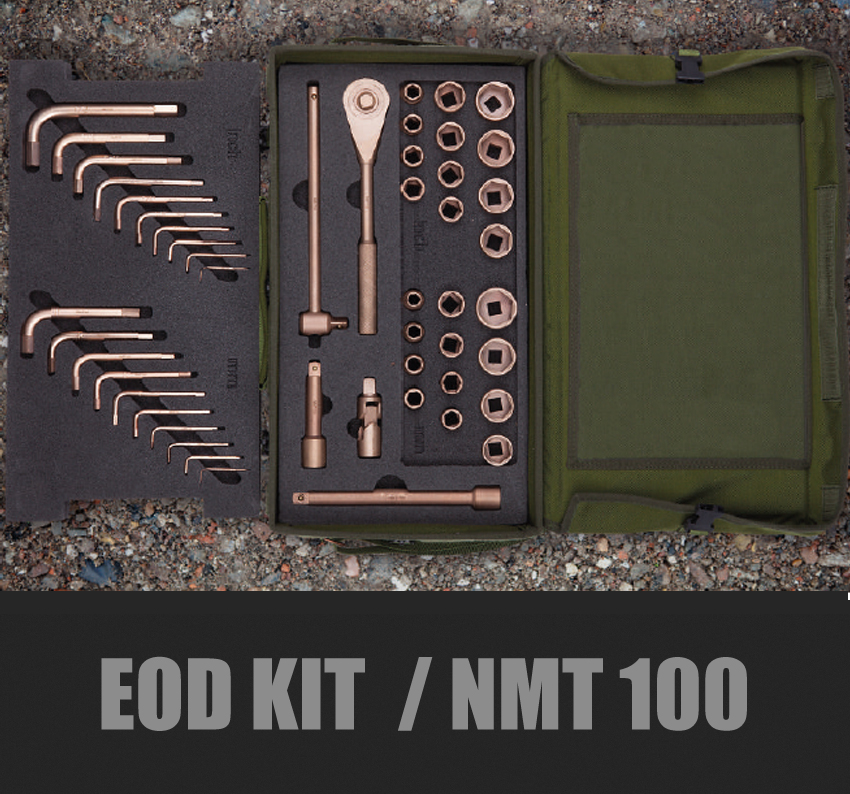

EOD TOOLS & KITS (49 Pieces Kit)
NON-MAG TOOLSNMT-100

SELECTION OF MECHANICAL TOOLS MADE
FROM BERYLLIUM COPPER ALLOY
NMT has a long history in the explosive
ordnance disposal business. The first non-
magnetic tools were designed and developed in
collaboration with UK Navy engineers and
divers.
Read more..
The SPECTRAN XFR V5 PRO is a portable re-al-time spectrum analyzer, designed to capture even shortest signal transmissions. Both its scanning speed and recording time are unrivaled.

The analyzer scans 20 GHz in less than 20 ms, making it the world’s fastest counter-surveillance receiver

• Rugged outdoor spectrum analyzer
• Real-time bandwidth of up to 175 MHz
• Certified per MIL-STD-810G andIP65
• Radio monitoring and enforcement

The world’s fastest real-time analyzer software

EOD / IED



We are one of the earliest signal jammer and booster wholesale traders.



We have established much cooperation with many great telecommunication companies to finish every client’s special requirements.



Our Signal jammer can block almost all Wireless Remote Control Devices, Wireless Telecommunication Devices, and some Wireless SPY Devices.



We comply with all defence and security industry regulations and have been at the forefront of working with governments and industry bodies to achieve this.



Our business culture and cautious yet thorough approach to providing security lead to a straightforward ethos of professionalism, Integrity and respect.

Excavation tools and hammers Supplied in a green sturdy fabric bag.

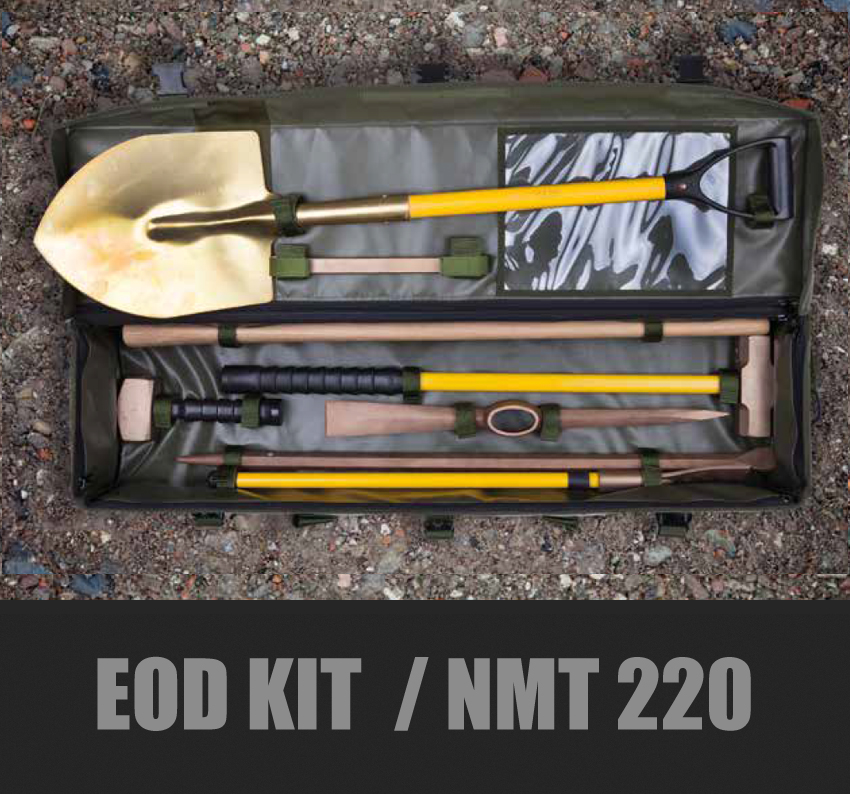

NMT-220 NON-MAG TOOLS

NON-MAG TOOLS has a long history in the explosive ordnance disposal business. The first non-magnetic tools were designed and developed in collaboration with UK Navy engineers and divers.
EOD TOOLS & KITS (36 Pieces Kit)

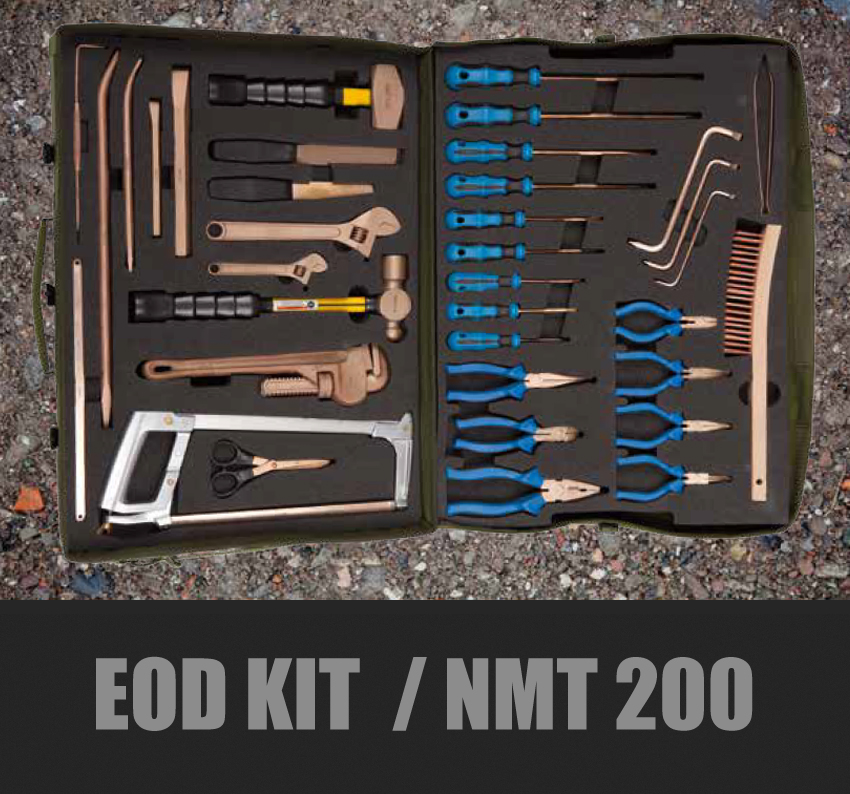

NMT-200 NON-MAG TOOLS


General purpose tools made from beryllium copper,phosphorous bronze and aluminum
NMT has a long history in the explosive ordnance disposal business. The first non-magnetic tools were designed and developed in collaboration with UK Navy engineers and divers.

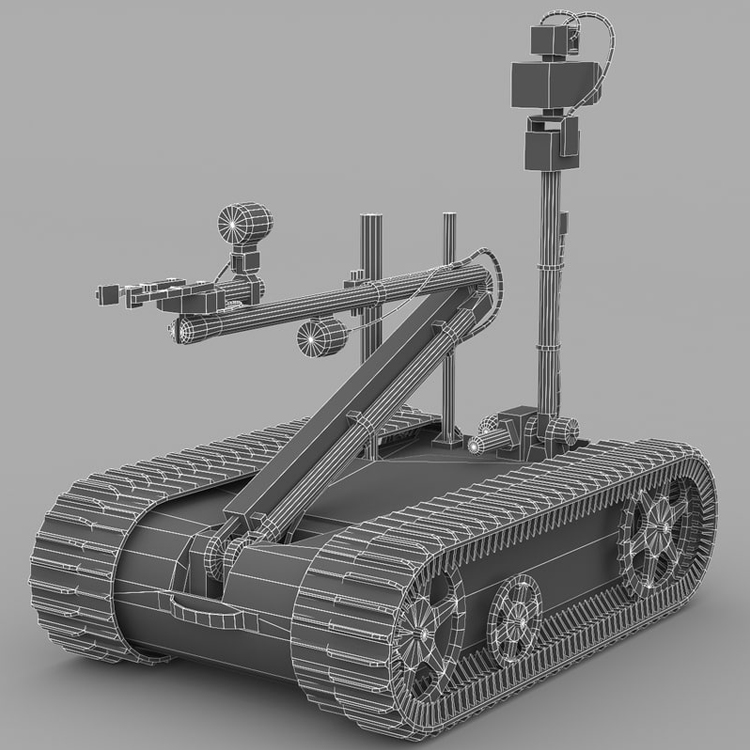

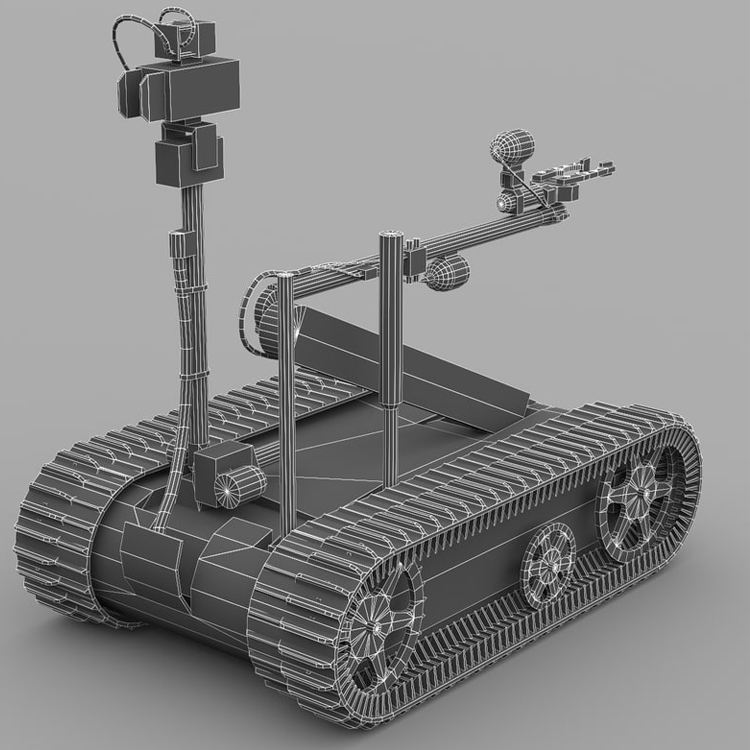

TOPSKY EOD Robot ER3

ER3 is a light explosive ordnance disposal (EOD) robot from our big gamut mainly to grab, remove and dispose the explosives.
The robot arm is flexible and can be operated in narrow space.
With its track band, it has powerful moving capacity.
So it is applicable in various tough situation, such as sand ,grass and slope and so on.
The robot is rough, dust proof ,waterproof , shockproof and performs well in every function.

Feature:

- Powerful moving capacity: with its track band , it can move on stairs, gaps.
- Fast movement. The speed can be adjustable.
- Compact size, can put in car
- Flexible grab arm
- The battery ,flat and arm are disassemble ,replaceable
- Rough product, dustproof ,waterproof , shockproof

Specification

Size:810 X 550 X 460mm
Weight: : <=30Kg (without batteries)
Battery weight: 4kg (total 24V, 20AH), can be expanded to 8kg (total 24V, 40AH)
Robot load capacity: >=10kg
Maximum speed:0-1.5m/s
Climb ability:200mm obstacles; 38 ° stairs; 40 ° slope
Operating hours: 3 hours
Protection class: IP65
Chassis height: Minimum 45mm from the ground
Effective arm length: 164mm
Effective ann angle :0 ~+ 360°
Manipulator weight:<= 15Kg
The maximum wingspan: 2000mm
Base rotation angle: -120~+ 120 °
Big ann tilt angle: 10 ~ 180 °
Small aim tilt angle: 20 ~ 180 °
Wrist rotation angle: -150 ~ + 150 °
Grab range: 0~ 170mm
PTZ pitch angle: -30 ~ + 90 °
PTZ rotation angle: 0 ~ + 360 °
Grab ability: 8kg (when arm is folded); 3kg (when ann is fully extended)
Vertical grab height: 1350mm
Horizontal grab distance: 1200mm

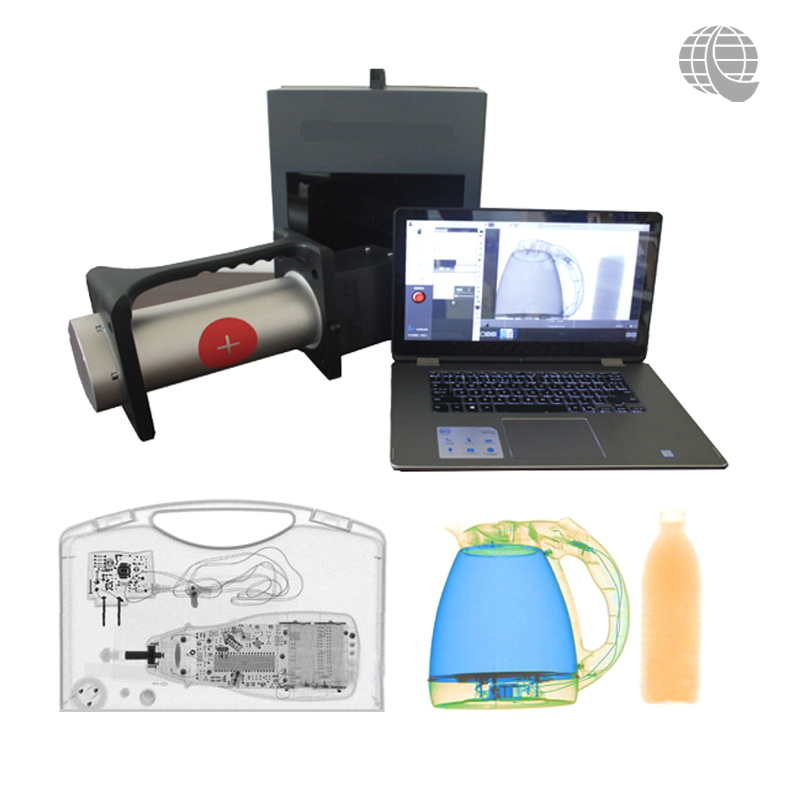

SECUSCAN SPX-3025P
portable X-ray scanner

Application: Security inspection, criminal investigation, smuggling and factory product quality testing.
Features: high-resolution image and compact and lightweight design

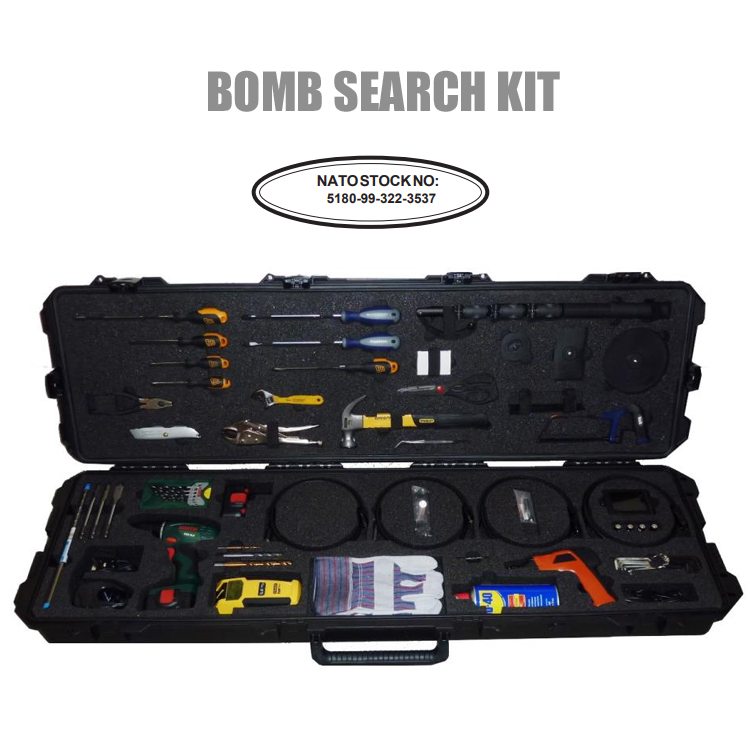

SDMS BOMB SEARCH KIT-SDMS

The Bomb Search Kit is an inexpensive kit
designed for IED search operation.
It contains a portable video scope, portable
drill, as well as an assortment of tools.
(NSN 5180-99-322-3537)

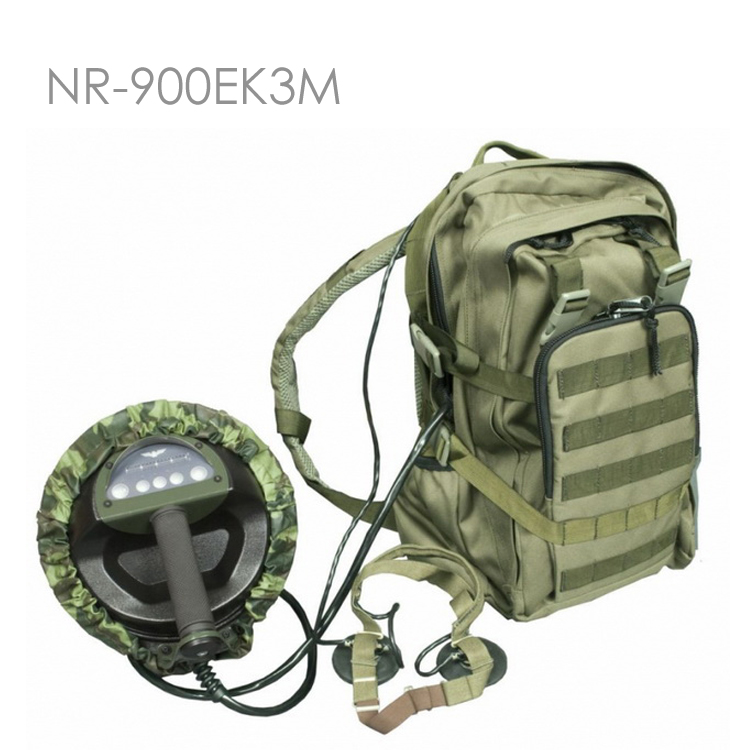

NR-900EK3M ‘EAGLE’ Non-linear junction detectors
STT GROUPSTT-NR-900EK3M


Detection of mines and explosive device with electronic fuses (activation system) concealed on the ground surface, slightly in the ground (snow), under the road pavement and within various facilities.

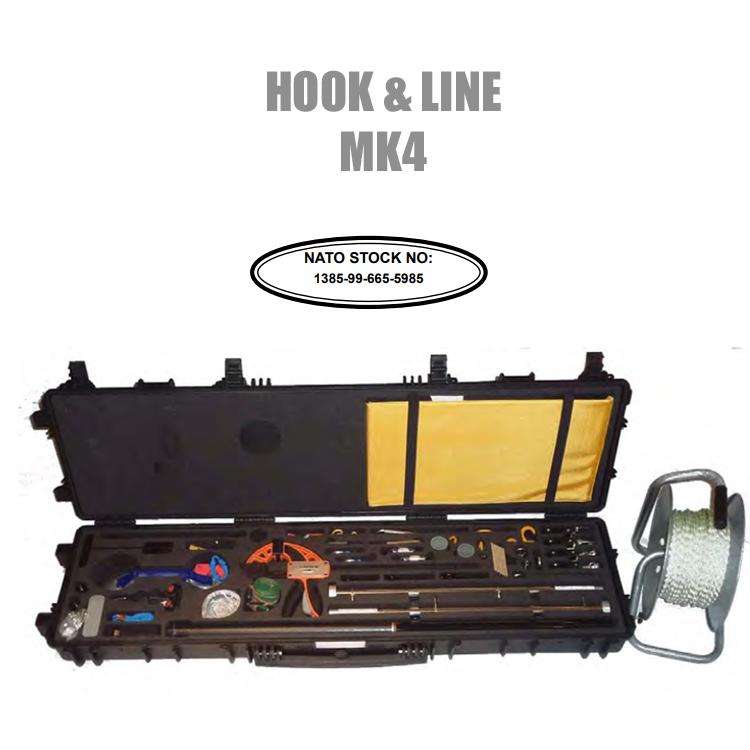

SDMS HOOK & LINE MK4

MK4 HOOK & LINE Developed in close cooperation with the British Army, the Mk4 Hook & Line Kit provides a variety of components for attaching a line to a suspected IED and devices for anchoring snatch blocks to floors, walls and windows and door frames.
(NSN 1385-99-665-5985)

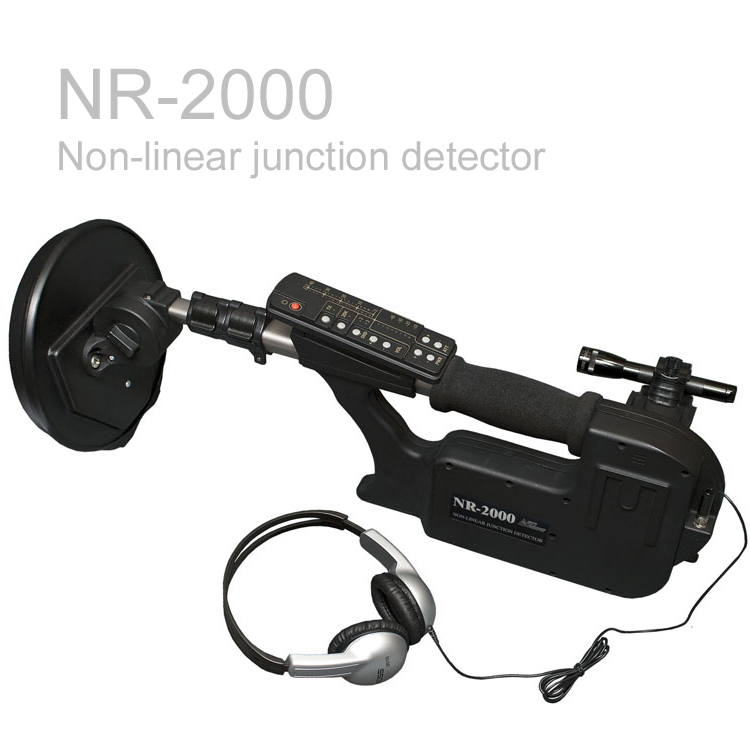

NR-2000 Non-linear junction detector

STT GROUP Non-Linear Junction Radar NR-2000 is intended to search secretly installed radio equipment that contains semiconductor components (radio controlled explosive devices, explosive devices with timer, mobile phones, etc.).
FORCIBLE Door Entry Device TOPSKY-PB6

PB6 Forcible door entry device is one pneumatic device to break into door and window. Its remote control design can ensure the safety of the operator.

As the device of police ,firefighting, army and enterprise, it can be fast to break into various doors of residential building, office building ,public building and rescue the life or block the criminal.

Application: Wooden door, metal door, outward open door ,inward open door , security door and 15 lock points security door

Made up: It is consist of door opener host, tube, remote control ,pressure reducing valve, external high-pressure cylinders and other accessories.

Fast: Several seconds to break into the door.

Safety

- No electric components and no oil. Can be used in harsh environments and industries.
- Air control system: Power is the natural air which is safe and available.
- Remote control.
- Water and rust resistance.
- Easy to operate without professional training.
- Light and compact: 16.5 KGS and can be operated by one person.

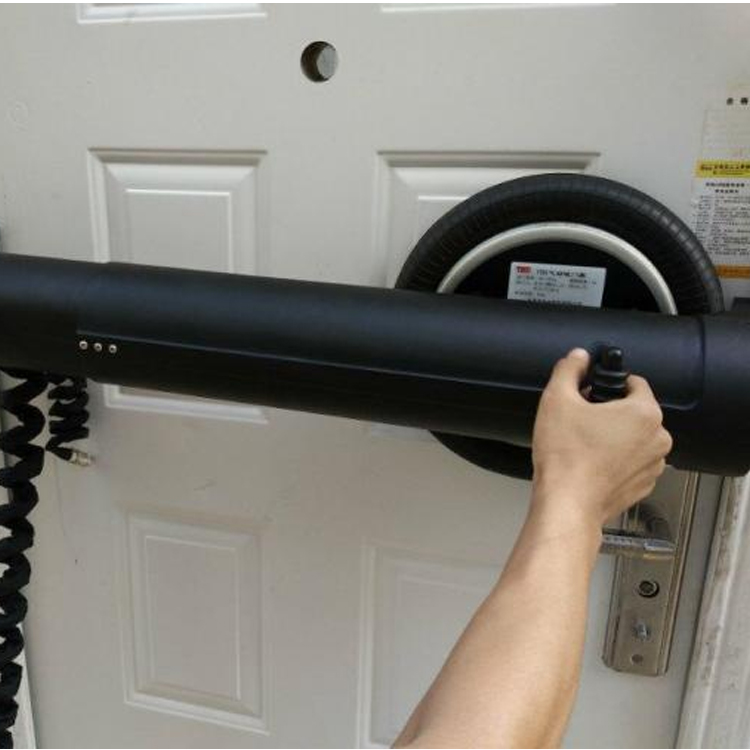

HYDRAULIC DOOR BREACHER (Battery-powered) - TOPSKY-DB6

The door breacher DB6 can break into iron door, multi function doors and security doors with virtually silent operation.

It is consist of 12V DC generator, pressure pump, hydraulic tank ,sealed container and break device.

The device is made from composite material and it is compact and portable.

Characteristic:

- Fast: Only 20 seconds from setup to break the door.
- Virtually silent operation
The noise is less than 50 DB within 5 meters distance
- High efficiency
Located on the door and make the operator go through easily
- Safety
Wireless remote control option
- High power
It can break the security door with 8 locks
- Multi function
Can break iron door, multi function door, security door and so on
- The battery set can last for 4 hours and open at least 20 doors
Read more..
