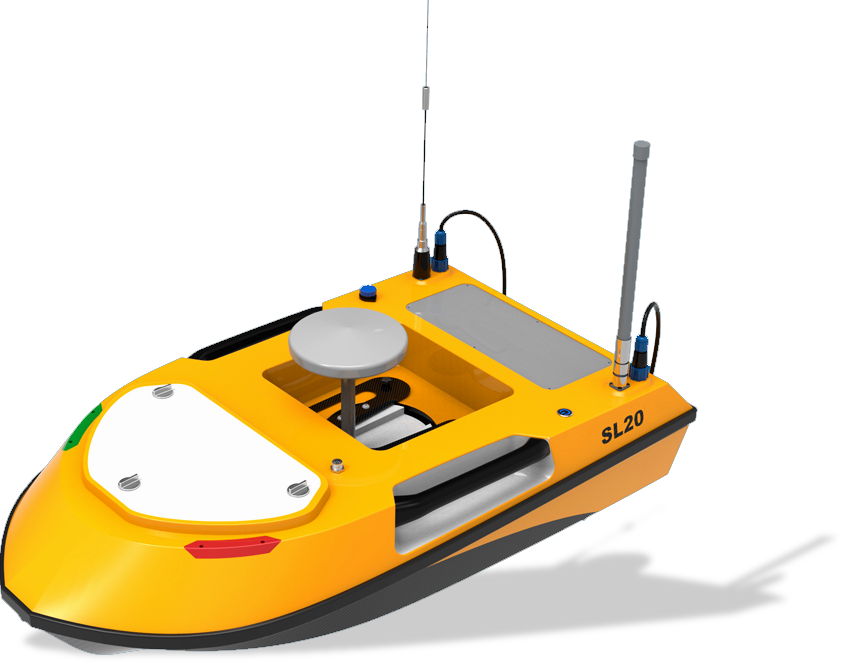

Autonomous Survey Boat SL20
A compact and portable unmanned surface vessel for hydrographic and bathymetry surveying
   Request for Quotation

Specifications



Dry Weight (with battery): 17 kg

Max. Speed: 8 knots

Endurance: 6 hours @ 3 kn

Payload Capacity: 10 kg

Propulsion: Duct type thruster

Battery: 33V / 40AH × 1 Pack

Collision Avoidance: Ultrasonic Sensor

Multi Mission: No



Instrumentation



Instrumentation Sontek RiverSurveyor S5/M9

Teledyne RD Instruments River Ray

Teledyne RD Instruments River Pro

Teledyne RD Instruments Rio Pro

Teledyne RD Instruments Stream Pro

Linkquest Flowquest

Options ADCP telemetry module

The SL20 is designed for water discharge measurement and hydrographic survey.


Is compatible with different brand ADCP and single beam sonar, like ROI, Sontek, Linkquest and etc ..


The boat is maneuverable with compact design, which make them easily be operated by just one person.


It could also be carried on the back of a SUV or a trunk.


The maximum speed can reach 5.5m/s and 2km control range, so that the boats are suitable for most water current environment.

International Armour Official Website
Dedicated pool for instruments
RIVER SURVEYOR M9 ADCP
RIVER RAY ADCP
The 177 mm-wide moon pool supports flexible deployment of different instruments like ADCPs and echo sounders

Compact and Long Endurance



The SL20 USV is 1 meter long and weights 17 kg, it’s easy for one man to operate and transport.



Powerful battery and low power consumption supports 6 hours of endurance at 3 knots.



TOP 100 INNOVATORS

MTR 2018

ROHS CERTIFIED

IEC CERTIFIED

FCC CERTIFIED

CE CERTIFIED

QMS CERTIFIED

ISO 9001 CERTIFIED

INTERNATIONAL STANDARDS CERTIFIED

MODELING SURFACE

Adaptable to extremely shallow water



With an extremely low draft of 15cm, the SL20 USV allows you to survey freely on offshore coasts, shoals and reefs where traditional manned vessel unable to enter.



High Speed and Well Protected Propeller



Waterjet  propulsion system drives the maximum speed to 5m/s



Safety protection avoids the propellers being intertwined with water plants or water debris.

Auto-pilot And Realtime Data Telemetry



The SL20 USV supports both remote control mode and auto-pilot mode, performs great line tracking capability.



The base station can be easily set up on field, data can be transmitted in real time.
